Ubiquitous 5G Requires Unique Small Cell Concealments — Meeting the goal of ubiquitous 5G service means deploying about 1 million 5G nodes from the approximately 300,000 that currently exist, according […]

Ubiquitous 5G Requires Unique Small Cell Concealments —

Meeting the goal of ubiquitous 5G service means deploying about 1 million 5G nodes from the approximately 300,000 that currently exist, according to Ericsson studies.

With the density of these nodes popping up across the urban, suburban, and rural, landscapes, the newly installed equipment must be aesthetically pleasing.

Several of the gating factors in deployment of 5G are zoning considerations, permitting and acceptance by local authorities having jurisdiction (AHJs) as well as local municipalities. Typically, permits for small cell infrastructure can be processed within 60 to 90 days, depending on the type of installation and if they meet the community’s noise and aesthetics requirements. While aesthetics is subjective, cities and homeowner’s associations (HOA) generally require pole-mounted telecom equipment to be inconspicuous.

This is especially true with small cells as they are installed at street level and easily viewed by the public. While most small cell equipment is minimalistic and well-packaged on the outside, there are certain installations that may require the use of concealment systems or shroud. As an example, an installation of 5G equipment may clash in a downtown area seeking to maintain a historic look unless the hardware is somehow concealed. A concealment system consists of shroud or cover to hide or disguise the mounted network equipment associated cable and hardware.

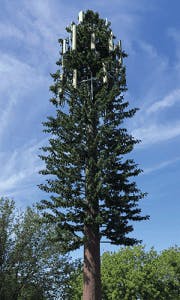

Figure 1. Camouflaged Wireless Tower

Concealments are nothing new, and, thankfully, have come a long way from camouflaged wireless towers. (See Figure 1.)

There are new concealment products that are optimized for good looks, and allow for fast site approvals and easy installation.

THE PROS of a concealment system are:

  • That it greatly helps with the aesthetics of an installation, enabling an acceptable permitting process.
  • It can also help reduce theft by hiding copper/RF cables and other components often targeted by thieves.

THE CONS are that if the concealment system is poorly designed or selected, the performance of the radio and antenna system can be greatly reduced.

The objective of concealment is to turn the installation as shown in Figure 2 to something more like Figure 3.

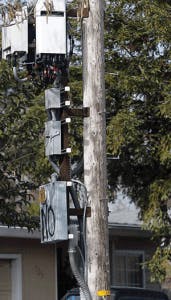

Figure 2. Crowded Installation

Figure 3. Clean Unobtrusive Installation

These concealment systems need to do more than just look good. These are specially engineered small cell enhancements that must be compatible with the radio and antenna designs, and must be thoroughly reviewed for structural, thermal, noise, and RF, capabilities.

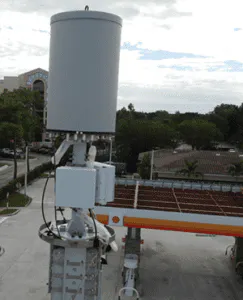

Figure 4 shows a rooftop system without a concealment system.

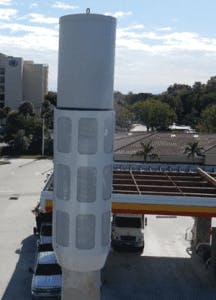

Figure 5 shows a rooftop system with a concealment system.

Figure 6 shows the inside of a concealment system, with radios and other equipment mounted.

Each site is unique and requires more than a cookie-cutter approach. Having the ability to provide customizable stealth concealment designs in-house allows for flexibility and speed needed for many different applications, such as roof top, wall or pole mount, or even streetlight installations.

Flexibility is key as we move from 300,000 sites to over one million sites, with over 20,000 jurisdictions requiring different solutions. States are developing laws that take into consideration the unique circumstances of their state and local environment, and establishing baseline standards like streamlined applications to access public rights-of-way, caps on costs and fees, and consistent timelines for consideration and processing of cell siting applications.

In selecting a pole mounted concealment system there are several considerations.

If possible, space inside the concealment should also be reserved for ancillary equipment such as a power supply unit (PSU), junction box, RF filters, fiber distribution box, ground bar, cabling, etc.

It is important for the concealment to blend in with the pole as much as possible. A design that is slim and long is preferred over wide and short. To cover various preferred looks, the concealment system must be able to be painted, for camouflage. Many radio equipment manufacturers do not recommend painting the radio as it may affect performance of the unit and may apply limitations to the warranty and service contract.

In looking at concealment designs, the preference is to conceal all cooling fins, front and back, but it may be necessary to leave the back fins exposed if needed to assure high temperature operation. A second option is to equip the concealment with a fan tray to maintain a suitable operating environment. To look as seamless as possible, there should be no, or minimal perforations and venting holes unless required for thermal performance or wind resistance. If perforations are required, the holes should be as small as possible to maximize concealment and also prevent intrusion by stinging insects.

Clearly, the concealment system must be able to be securely mounted to the pole and able to support expected weight of the radio plus all other support equipment. It is important to include a suitable safety factor in the calculations.

And equally as important, the concealment must allow easy access to the equipment for maintenance purposes.

MECHANICAL REQUIREMENTS

Looking at the mechanical requirements, the following should be considered.

Pole-mounted concealments should not interfere with access to or the ability to climb the pole.

The concealment should be designed to mount on a mast, pole or wall and have a mounting bracket with the following provisions:

  • ½" slots for banding (hose clamps) on metal or wooden poles. NOTE: ½" anchor bands can typically support up to 1,500 lbs.
  • ½" holes for through-bolts on wooden poles. NOTE: ½" machine bolts can typically support up to 5,000 lbs.
  • The mounting bracket should be aluminum or steel, strong enough to safely and rigidly support the weight of the assembly and all attached equipment.
  • For pole-mounted applications, the concealment should be as narrow as possible to attempt to match the profile of the pole. Typical 35-40-foot utility poles found in cities are about 10-12 inches in diameter.
  • The concealment should be designed with a removable cover or hinged doors to allow maintenance personnel easy access to the equipment.
  • The concealment should be large enough to conceal the equipment behind it.
  • The concealment should have mounting provisions (specific pre-drilled hole patterns) for the installed equipment.
  • The concealment geometry should allow space for short coaxial RF cables to be connected to radio antenna ports while providing for a drip loop where necessary without compromising the minimum allowed bend radius of the cable.
  • The concealment solution should include cable holes or knockouts through the back plate for cable ingress and egress.
  • The concealment should comply with Telcordia GR-1089-CORE Electromagnetic Compatibility and Electrical Safety – Generic Criteria for Network Telecommunications Equipment, Section 9 "Bonding and Grounding".
  • The solution should be free of defects, such as sharp edges, that could present a safety hazard to personnel involved in the assembly, installation, use, or maintenance of the product.

Food for Thought from Our 2022 ICT Visionaries

GENERAL REQUIREMENTS

In general, concealment solutions should comply with General Requirements for surface temperature, graffiti resistance, insect intrusion, exposure to high temperature, wind resistance, acoustic noise, earthquake resistance, etc., found in:

  • Telcordia GR-487-CORE Generic Requirements for Electronic Equipment Cabinets
  • Telcordia GR-3108-CORE Generic Requirements for Network Equipment in the Outside Plant (OSP)
  • Telcordia GR-3178-CORE Generic Requirements for Wireless Transceiver Facilities

EVALUATE PROPERLY

Remember, there are potential pitfalls with concealment systems. First and foremost, the system should be evaluated properly so it does not affect the operation of the radio and antenna system. This type of analysis should examine 2 major areas: 1.) mechanical and 2.) environmental. In addition, service providers must ensure that the criteria listed earlier is included in this examination.

IN CLOSING

Use of concealment systems allow for better looking 5G systems, and help expedite the permitting process. The key to success is the selection of the right product for the radio system.

Ericsson’s Network Infrastructure & Site Solutions Team designs, extensively tests, and works with contract manufacturers, to provide concealment solutions that not only look good, but effectively mesh with the operating parameters of the wireless systems. Our team is ready to help with any installation issues that may be slowing deployments of Ericsson equipment.

For more information, please email [email protected] or visit https://www.ericsson.com/en. Follow Ericsson on Twitter @ericsson.
