StreetSmart Ready Connect Terminal

The Ready Connect Terminal (RCT) is a splice terminal designed for pedestal applications. Optimized for above-ground, distributed TAP and distributed split architectures and enabled with multiple FBT and PLC splitter options, this craft-friendly terminal delivers up to eight drops when mid-spanning is required. Drop cables can be pre-terminated or spliced.
Related To:
Feb. 3, 2025
2 min read

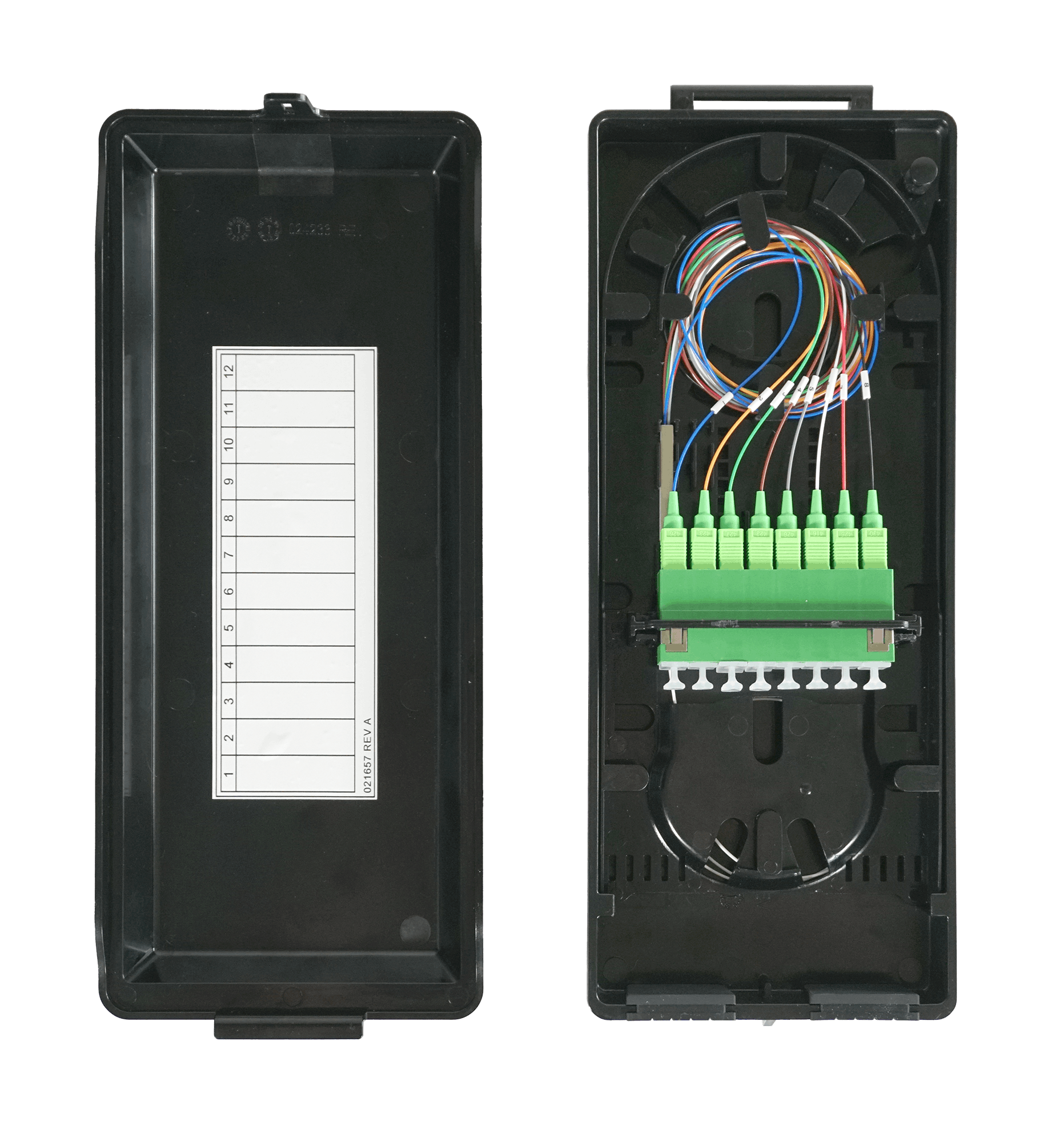

67a11aec2e6fe818e0e1d69f Ready Connect Terminal Separate Front

Product Details

The Ready Connect Terminal is a small, breathable terminal that allows for mid-spanning, splicing, and terminations with optical components. Delivering Clearfield’s commitment to craft-friendly solutions, the terminal features a removable splice tray for easy access when technicians are splicing up to 24 loose tube splices, in addition to a modular, removable adapter plate for terminal applications that provides easy access for adapter cleaning.

Meeting the demand for small, economical solutions, the small form factor allows for mounting in Clearfield’s extremely compact CraftSmart® FiberFirst 6-inch Pedestal, offering homeowners a discreet, aesthetically pleasing option for FTTH deployments.

Features & Benefits

Integrity

  • Designed for configuration flexibility - splicing, pigtails or splitters
  • Designed for mid-span applications

Protection

  • Manufactured with TRISTAR Polycarbonate plastic for impact and flame retardant
  • Lay in grommet for environmental protection

Access

  • Removable cover for easy access
  • Removable splice tray allows easy fiber routing
  • Removable adapter plate for easy cleaning and scoping
  • Removable splice tray for mid-spanning and drop terminations

Investment

  • Providing a small economical solution for the provider
  • Designed in flexibility for use as a terminal or splice enclosure

Technical Specifications

Dimensions: 11.30”(H) x 4.70”(W) x 2.00”(D) (287.02mm x 119.38mm x 50.8mm)

Terminal Options: Mid-spanning, plug-and-play, splicing, optical components enabled

Number of Splitters: Supports up to (3) FBT splitters and up to (3) PLC splitters

Material: Manufactured with TRISTAR Polycarbonate plastic for impact and flame retardant

Output Connector: SC/APC, SC/UPC

Number of Drops or Distribution Ports: Supports up to 8 drops

Cable Entrance: Lay in grommet with internal strain relief

Labeling: Designation label on door

Mounting Options: Above ground only in a pedestal or on an interior wall
